*** Digital file only, No physical items will be shipped ***

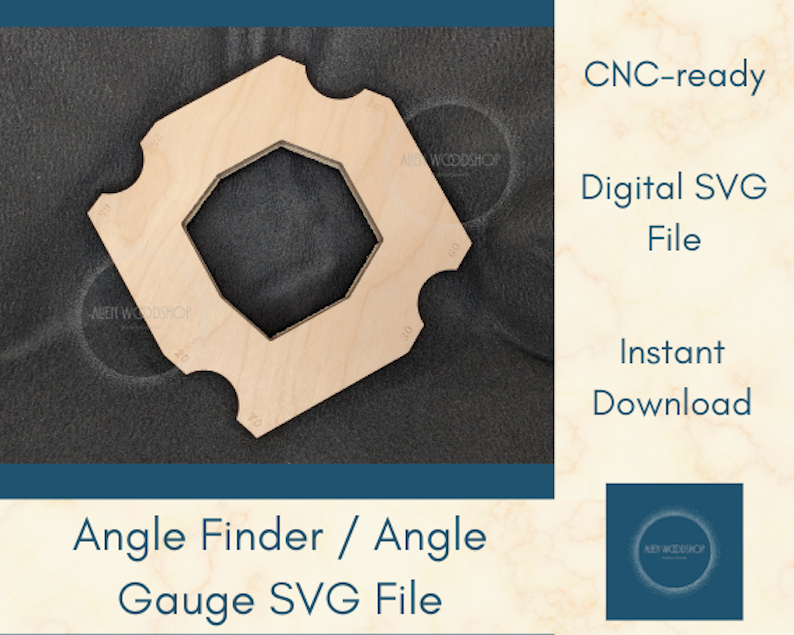

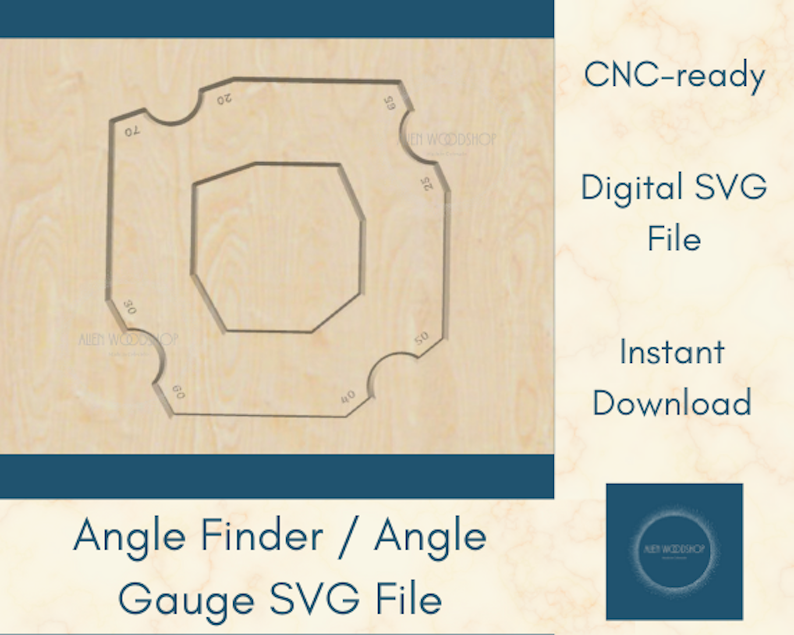

This is an SVG file for an angle gauge used for CBN or stone sharpening wheels, or saw blades/tables. Quick and easy to use, adjust your grinder platform quickly and accurately. Will also work for table saw blade or bandsaw table. File was designed in Easel. We recommonend a 60 degree v-carve bit for the numbers then a 1/8in bit for cutout. Internal angles match the external making it easy to hold or clamp if needed.

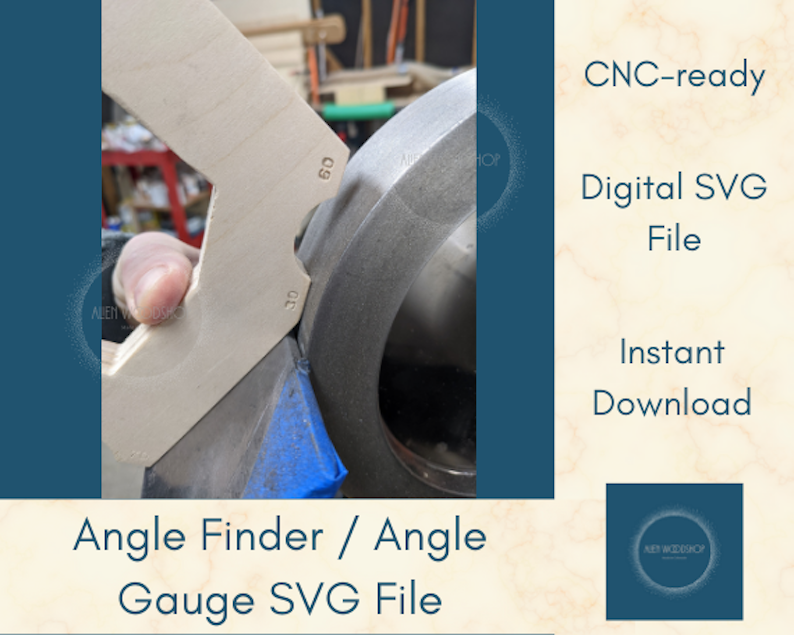

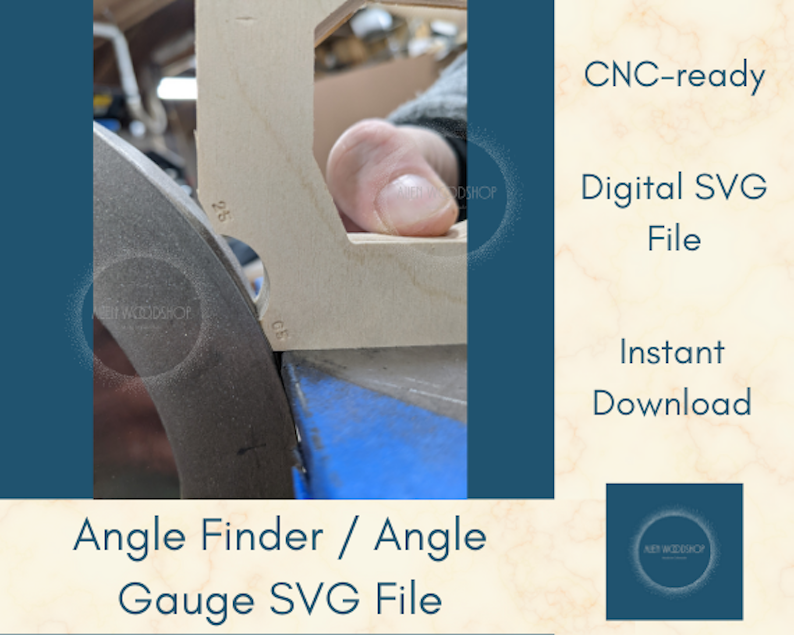

I personally use this gauge to adjust my 40/40 grinds on bowl gouge, roughing gouge angles, Skew chisel angles, and I even use it for my hand chisel angles.
We sell a 3D printed version of our angle finder which can be found here:
https://www.alienwoodshop.com/shop/p/angle-finder-angle-gauge-for-grinder-sharpening-wheel-or-saw-bladetable-angle-1
*** Digital file only, No physical items will be shipped ***
This is an SVG file for an angle gauge used for CBN or stone sharpening wheels, or saw blades/tables. Quick and easy to use, adjust your grinder platform quickly and accurately. Will also work for table saw blade or bandsaw table. File was designed in Easel. We recommonend a 60 degree v-carve bit for the numbers then a 1/8in bit for cutout. Internal angles match the external making it easy to hold or clamp if needed.
I personally use this gauge to adjust my 40/40 grinds on bowl gouge, roughing gouge angles, Skew chisel angles, and I even use it for my hand chisel angles.
We sell a 3D printed version of our angle finder which can be found here:
https://www.alienwoodshop.com/shop/p/angle-finder-angle-gauge-for-grinder-sharpening-wheel-or-saw-bladetable-angle-1
